- Electric hot water boiler
- 12 to 3360 kW
- Electrical power
- 160, 200 & 250 psig
- No localized emissions

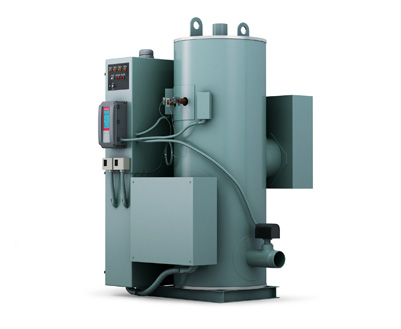

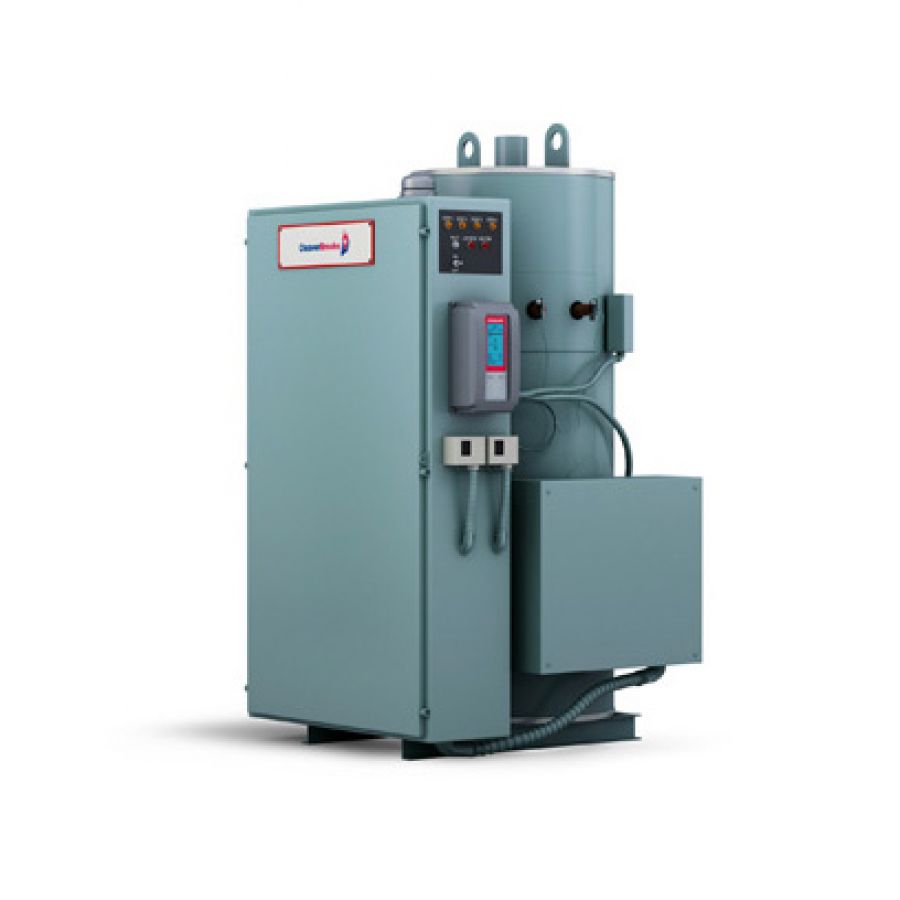

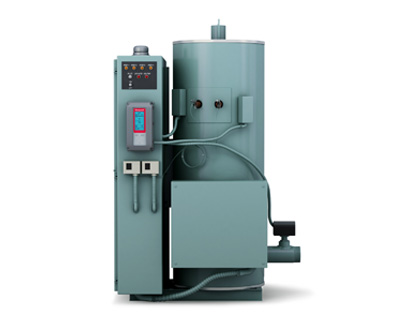

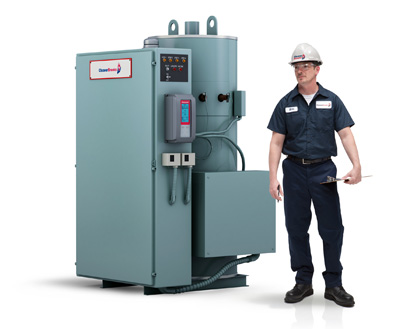

The Cleaver-Brooks Electric Boiler Model WB is a hot water boiler.
Description
The Cleaver-Brooks Model WB hot water electric boiler operates in hot water heating systems with minimum space requirements. This unit includes operating controls, elements, fuses, contactors, relief valve, drain valve, etc. Vessel sizes range from 12" to 42" diameter with an output spanning 12 kW to 3,360 kW.
Features:
- Compact design and smaller footprint
- 100% emissions-free
- Quiet operation with virtually no noise emissions
- Nearly 100% efficiency at all operating points
- Ease of maintenance with reduced complexity/number of moving parts
- All units are wired, tested, and ready for installation.
Technical Data
O&M Manuals
Dimensions & Ratings Chart
Warranty Information
Boiler Book
Specifications
Catalog Cuts
- CC_Chromalox MiniMax 3_Apr10 (pdf)
- CC_Danfoss Type KP and KPI Pressure Switches and Thermostats_Oct10 (pdf)
- CC_GE GFA Relay Ground Fault Current Detection Sys_Aug09 (pdf)
- CC_Gems Sensors Warrick Series 26 Low Water Cutoff_Mar10 (pdf)
- CC_Honeywell T7079A,B Remote Temperature Controller_Mar10 (pdf)
- CC_Honeywell T775 Electronic Standalone Controller_Feb10 (pdf)
- Honeywell UDC2500 Universal Digital Controller Catalog Cuts (pdf)
- CC_McDM FS251_FS254 Flow Switch_Jan10 (pdf)
- CC_Selectronix 2100 Series Step Controller OM Manual_Dec10 (pdf)
- CC_Shark 100 Multifunction Power and Energy Meter_Oct10 (pdf)
- CC_Viconics R851B Step Controller_Oct10 (pdf)
- CC_Viconics R851V Step Controller_Jul09 (pdf)
- Electric Catalog Cuts - Chromalox MaxPac (pdf)
