Non-ghosting graffiti removal

Scratch, dent, moisture, impact resistant

25-year limited warranty

Class B ASTM E84

SierraSeries® TOILET PARTITION MODEL NUMBER SUMMARY

(Show Maximum-Height Door and Panel Model Numbers)

Mounting Configuration	Standard Hardware		Optional Full-Height Hardware
Floor-Anchored	Class B1091	Class B, GAP-FREE1091G	Class B1091.67	Class B, GAP-FREE1091G.67

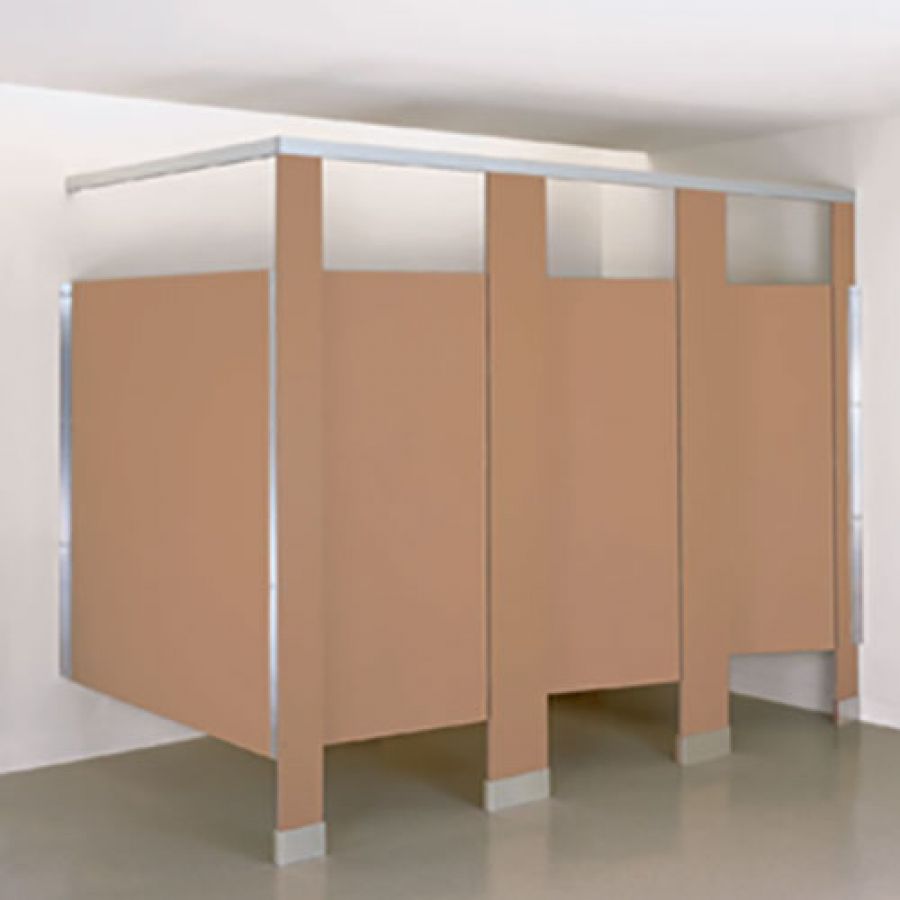

Overhead-Braced	1092	1092G	1092.67	1092G.67
Floor-To-Ceiling	1096	1096G	1096.67	1096G.67
Ceiling-Hung	1098	1098G	1098.67	1098G.67

{tab COLOR}

SOLID COLOR REINFORCED COMPOSITE EARTHTONE COLORS:

Important Note:

Minor edge nicks and random color variations are a normal consequence of manufacturing material containing natural fibers. Where color consistency is critical, compact laminate 1080 DuraLineSeries is recommended. SierraSeries Solid Color Reinforced Composite (SCRC) colors are for descriptive purposes only. Request color samples for color confirmation.

SCRC is a natural material comprised of wood chips, dyes and resins with a melamine surface. Edges lack a melamine surface and may discolor in environments with significant lighting. Discoloration of edges, should it occur, is not covered under warranty.

{tab HARDWARE}

STAINLESS STEEL HARDWARE

Standard Concealed Stainless Steel (1090)

Heavy-gauge type 304 stainless steel
Hinges adjust for partial opening or self-closing
Slide latch with keeper
Clothes hook
Emergency access inswing doors

Optional Full-Height Stainless Steel (1090)

Heavy-gauge type 304 stainless steel
Self-closing hinge runs full height
Full-height angle bracket and U-channels
Reinforced latch, keeper
Emergency access inswing doors
Add suffix .67 to 1090 Series Number

Standard Stile Base Leveling Device (1090)

7-gauge steel angle leveling bar factory installed to stile
3/8" (10mm) diameter stainless steel wedge floor anchors
Patented 1-piece shoe conceals leveling device

Standard Factory-Installed Inserts (1090)

Metal-to-metal contact for securing hardware
Withstand 1500 lbs (6672 N) pull-out-force
Vandal-resistant Pin-in-head Torx Screws

{tab HARDWARE}

ASTM E 84 SURFACE BURNING CHARACTERISTICS

ASTM E 84 Interior Wall and Ceiling Finish Classification (click to view larger)

Please see Technical Bulletin TB-73

{tab HARDWARE}

SHOWER DIVIDERS, DRESSING COMPARTMENTS, URINAL SCREENS

divider

Overhead-Braced Shower Dividers

Shower curtain track and hooks in headrail.

Overhead-braced configuration can be furnished with shower curtains, curtain track and hooks concealed in headrail.

Wall-Hung, Floor-Anchored,
Post-To-Ceiling Screens

Coordinate urinal, entrance screens, shower dividers and dressing compartments with toilet partitions. Select Solid Color Reinforced Composite or Solid Phenolic for wet areas..
